By JAIN PRECISION TOOLS
Achieve Superior Bore Geometry, Surface Finish & Dimensional Accuracy

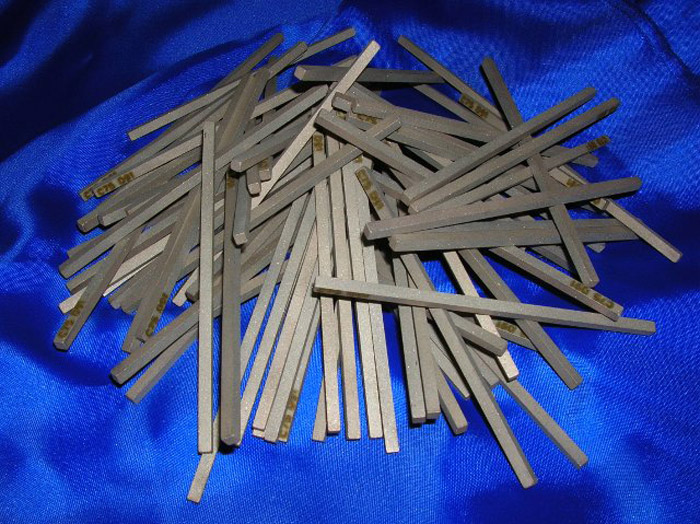

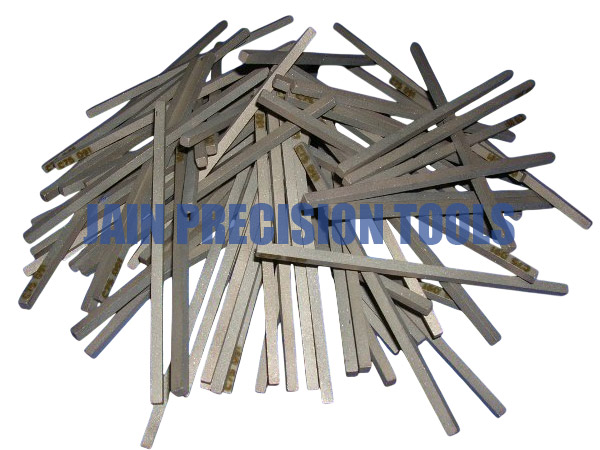

JAIN PRECISION TOOLS manufactures and supplies high-performance Abrasive Honing Stones designed for precision honing operations across automotive, hydraulic, aerospace, bearing, tooling, and general engineering industries. Our honing stones are engineered to deliver exceptional stock removal rates, superior surface finish, and precise bore geometry while maintaining excellent tool life.
Whether for rough honing, semi-finish honing, or plateau finishing, our abrasive honing stones ensure consistent performance on a wide range of materials.
Silicon Carbide (SiC)
- Ideal for cast iron, non-ferrous metals, bronze, brass, and aluminum
- Fast cutting action
- Excellent surface finish generation
Aluminum Oxide (Al₂O₃)
- Suitable for alloy steels, carbon steels, stainless steels, and hardened steels
- High durability and dimensional control
- Consistent cutting performance
Ceramic & Premium Abrasive Bonds
- Enhanced cutting efficiency
- Longer stone life
- Improved bore geometry control
| Grit Size | Application |
|---|---|
| 80 – 120 | Heavy stock removal, rough honing |
| 150 – 220 | Semi-finish honing |
| 280 – 400 | Fine honing operations |
| 500 – 800 | Precision finishing |
| 1000 – 1500 | Super-finishing and plateau honing |
| 2000+ | Mirror finish applications |
Custom grit combinations are available according to component material, stock allowance, and surface finish requirements.
Automotive Industry
- Engine Cylinder Liners
- Cylinder Blocks
- Connecting Rod Bores
- Camshaft Bores
- Gear Components
- Transmission Parts
Hydraulic & Pneumatic Industry
- Hydraulic Cylinders
- Valve Bodies
- Pump Housings
- Servo Components
- Precision Sleeves
Aerospace Industry
- Landing Gear Components
- Actuator Cylinders
- Precision Bushings
- Hydraulic Systems
Bearing Industry
- Bearing Races
- Bearing Housings
- Precision Rings
General Engineering
- Bushes
- Sleeves
- Precision Tubes
- Tool Holders
- Mold Components
- High Stock Removal Rate
- Excellent Bore Roundness & Cylindricity
- Superior Surface Finish Quality
- Consistent Size Control
- Reduced Cycle Time
- Extended Stone Life
- Stable Cutting Performance
- Suitable for Manual, Semi-Automatic & CNC Honing Machines
- Available for Sunnen®, Nagel®, Gehring®, Kadia®, Engis® and Special Honing Systems
Step 1 – Rough Honing
Coarse grit stones remove machining marks and quickly achieve the desired bore size.
Step 2 – Semi-Finish Honing
Medium grit stones improve bore geometry and reduce surface irregularities.
Step 3 – Finish Honing
Fine grit stones generate the required surface finish and dimensional accuracy.
Step 4 – Plateau Honing (Optional)
Ultra-fine abrasives create a plateau surface structure, improving lubrication retention and extending component life.
Our abrasive honing stones can achieve:
| Surface Finish (Ra) |
|---|
| 1.5 – 3.0 µm |
| 0.8 – 1.5 µm |
| 0.4 – 0.8 µm |
| 0.2 – 0.4 µm |
| Below 0.2 µm (special applications) |
Actual results depend on material, machine condition, coolant, and honing parameters.
- Bore Diameter Range: 3 mm to 1000 mm
- Material Hardness: Up to 65 HRC
- Stock Removal: Up to 0.50 mm depending on application
- Cross Hatch Angle: 20° to 60°
- Compatible with Oil and Water-Based Honing Fluids
- Custom Bond Formulations Available
At JAIN PRECISION TOOLS, we combine advanced abrasive technology, precision manufacturing, and application engineering expertise to deliver honing solutions that improve productivity, component quality, and manufacturing efficiency.
Our Expertise Includes:
- Abrasive Honing Stones
- Diamond Honing Stones
- CBN Honing Stones
- Sunnen Type Honing Sticks
- Custom Honing Tools
- Multi-Stone Honing Mandrels
- Honing Process Optimization
JAIN PRECISION TOOLS – Your Trusted Partner for Precision Honing Solutions, Superior Surface Finishes, and High-Performance Abrasive Technology.
