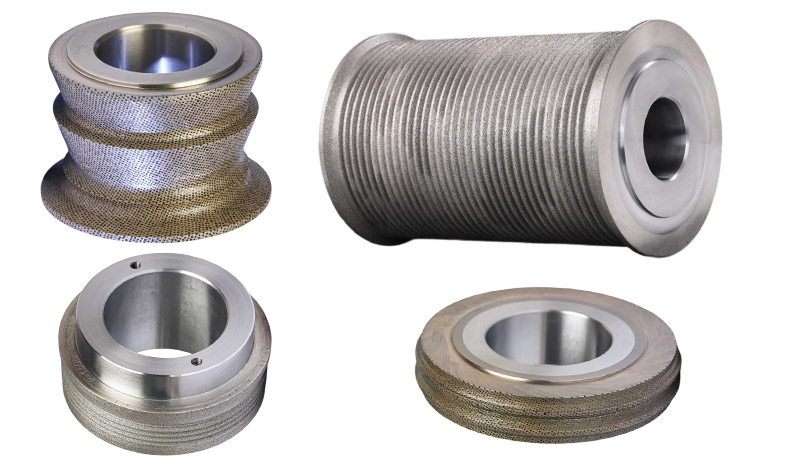

Reverse Plated Diamond Dressers

Ultra-Precision Dressing Solutions for High-Performance Grinding Applications

Manufactured by JAIN PRECISION TOOLS

JAIN PRECISION TOOLS specializes in the design and manufacture of Reverse Plated Rotary Diamond Dressers for precision profiling and conditioning of vitrified bond grinding wheels used in automotive, bearing, gear, aerospace, cutting tool, and precision engineering industries.

Our Reverse Plated Rotary Dressers are engineered to deliver maximum profile accuracy, superior dressing consistency, extended service life, and reduced grinding costs in high-volume production environments.

A Reverse Plated Rotary Diamond Dresser is manufactured by first creating the exact negative profile required on the grinding wheel. Selected diamond particles are then electroformed into a nickel matrix, creating a highly accurate dressing tool capable of reproducing complex wheel profiles with exceptional repeatability.

Unlike conventional rotary dressers, reverse-plated technology provides:

• Higher Profile Accuracy
• Superior Diamond Exposure
• Better Chip Clearance
• Reduced Dressing Forces
• Improved Grinding Wheel Sharpness
• Longer Grinding Wheel Life
• Consistent Dressing Results

The rotary dresser rotates against the grinding wheel at a predetermined speed ratio. The exposed diamond particles remove bond material and worn abrasive grains from the grinding wheel, continuously restoring the wheel profile and cutting ability.

The result is:

• Precise Wheel Geometry
• Improved Grinding Performance
• Lower Grinding Forces
• Reduced Heat Generation
• Better Surface Finish on Components

JAIN PRECISION TOOLS utilizes advanced manufacturing processes including:

• CNC Profile Generation
• Precision Electroforming Technology
• Controlled Diamond Placement
• Reverse Electroplating Process
• High Accuracy EDM Manufacturing
• Optical Profile Inspection
• Dynamic Balancing
• CMM Measurement & Verification

Reverse Electroplated Nickel Bond

The diamond particles are securely embedded into a specially developed nickel matrix providing:

Features

• High Diamond Retention
• Uniform Diamond Distribution
• Maximum Diamond Exposure
• Excellent Profile Reproduction
• Stable Dressing Performance
• Superior Wear Resistance

Benefits

• Longer Service Life
• Consistent Dressing Quality
• Reduced Machine Downtime
• Lower Cost per Component

Natural Diamond

Applications:

• General Production Grinding
• Automotive Components

MCD (Monocrystalline Diamond)

Applications:

• Precision Grinding
• Fine Profile Dressing

Advantages:

• Sharp Cutting Action
• Superior Surface Finish

CVD Diamond

Applications:

• High-Speed CNC Grinding
• Long Production Runs

Advantages:

• Uniform Wear Characteristics
• Excellent Thermal Stability

Premium Selected Diamond Grit

Available for:

• Ultra-Precision Profile Generation
• High Accuracy Gear Grinding
• Bearing Raceway Grinding

Vitrified Bond Grinding Wheels

Most common application for reverse plated rotary dressers.

Used for:

• Cylindrical Grinding
• Internal Grinding
• Profile Grinding
• Camshaft Grinding

CBN Grinding Wheels

Applications:

• Bearing Grinding
• Automotive Components
• Precision Shaft Grinding

Gear Grinding Wheels

Applications:

• Spur Gears
• Helical Gears
• Worm Gears
• Splines

Thread Grinding Wheels

Applications:

• Lead Screws
• Ball Screws
• Thread Gauges

JAIN PRECISION TOOLS Reverse Plated Rotary Dressers are suitable for:

Cylindrical Grinding Machines

• Studer
• Schaudt
• Toyoda
• Micromatic Grinding Technologies

CNC Grinding Machines

• Junker
• Danobat
• Blohm

Gear Grinding Machines

• Reishauer
• Kapp Niles
• Gleason

Camshaft Grinding Machines

• Junker
• Landis

Bearing Grinding Machines

• Fives Landis
• Nova

Tool Grinding Machines

• Walter
• ANCA
• Rollomatic

Automotive Industry

Engine Components

• Camshaft Grinding
• Crankshaft Grinding
• Fuel Injection Components
• Transmission Parts
• Steering Components

Bearing Industry

Bearing Components

• Inner Rings
• Outer Rings
• Rollers
• Raceway Profiles

Gear Manufacturing

Gear Types

• Spur Gears
• Helical Gears
• Planetary Gears
• Worm Gears
• Splines

Aerospace Industry

• Turbine Shafts
• Landing Gear Components
• Actuator Parts
• Precision Bearings

Cutting Tool Industry

• End Mills
• Reamers
• Hobs
• Broaches
• Gear Cutters

Vitrified Grinding Wheels

High-Precision Grinding

Final dressing parameters depend on wheel specification, machine rigidity, coolant conditions, and component requirements.

• Profile Accuracy up to ±1 Micron
• Exceptional Form Retention
• Maximum Diamond Utilization
• Reduced Dressing Time
• Consistent Wheel Conditioning
• Lower Grinding Costs
• Extended Wheel Life
• High-Speed Production Capability
• Custom Profiles as Per Customer Drawing
• Reconditioning & Inspection Services Available

• Automotive
• Bearing Manufacturing
• Aerospace
• Gear Manufacturing
• Cutting Tool Industry
• Hydraulic Components
• Medical Components
• Precision Engineering
• Power Generation
• General Manufacturing

With decades of expertise in superabrasive tooling and grinding technology, JAIN PRECISION TOOLS delivers world-class Reverse Plated Rotary Diamond Dressers engineered for the most demanding grinding applications. Every dresser is manufactured with precision, inspected with advanced metrology systems, and optimized for maximum performance and productivity.

JAIN PRECISION TOOLS

Reverse Plated Rotary Diamond Dressers for Precision Profiling, Superior Wheel Conditioning, Extended Tool Life, and Maximum Grinding Efficiency.

Custom Profiles • High Accuracy • Long Life • Global Quality Standards
