High-Precision Form Dressing Solutions by JAIN PRECISION TOOLS
Precision Dressing Technology for Advanced Grinding Applications

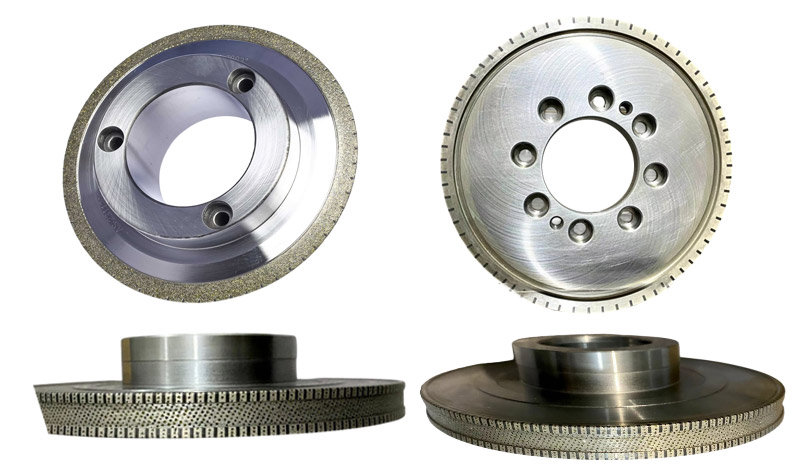

JAIN PRECISION TOOLS manufactures high-performance MCD (Monocrystalline Diamond) Rotary Dressers and CVD (Chemical Vapor Deposition Diamond) Rotary Dressers designed for precision dressing and profiling of grinding wheels used in demanding industrial applications. Our rotary dressers provide exceptional profile accuracy, superior surface finish, longer dressing life, and consistent grinding wheel performance for high-volume production environments.
Rotary Diamond Dressers are precision-engineered diamond tools used to generate and maintain the profile, geometry, and cutting efficiency of grinding wheels. During dressing, the rotary dresser rotates in synchronization with the grinding wheel, ensuring highly accurate profile transfer and optimum wheel conditioning.
JAIN PRECISION TOOLS offers:
- MCD Rotary Diamond Dressers
- CVD Rotary Diamond Dressers
- Reverse Plated Rotary Diamond Dressers
- Full Form Rotary Dressers
- Crush Form Rotary Dressers
- Custom Profile Rotary Dressers
Monocrystalline Diamond Rotary Dressers utilize carefully selected premium single-crystal diamonds.
Advantages
- Superior edge sharpness
- Excellent profile retention
- High wear resistance
- Outstanding dressing accuracy
- Longer tool life
- Ideal for precision profile dressing
Typical Applications
- Automotive components
- Transmission gears
- Bearing races
- Fuel injection systems
- Camshafts
- Crankshafts
- Aerospace turbine parts
- Hydraulic components
- Precision tooling industry
CVD Diamond Rotary Dressers are manufactured using synthetic diamond layers deposited through Chemical Vapor Deposition technology.
Advantages
- Uniform diamond structure
- Excellent thermal stability
- High impact resistance
- Consistent dressing performance
- Suitable for complex profiles
- Reduced dressing costs
Typical Applications
- High-speed grinding operations
- Aerospace component grinding
- Precision bearing manufacturing
- Medical implant grinding
- Tool manufacturing
- Ceramic and carbide grinding
Vitrified Bond Grinding Wheels
- Conventional Aluminum Oxide Wheels
- White Aluminum Oxide Wheels
- Ceramic Abrasive Wheels
- SG Wheels
- CBN Vitrified Wheels
Resin Bond Wheels
- Diamond Wheels
- CBN Wheels
- Hybrid Bond Wheels
Metal Bond Wheels
- Precision Diamond Wheels
- Superabrasive Grinding Wheels
Ceramic Bond Wheels
- High Porosity Wheels
- Structured Abrasive Wheels
Automotive Industry
- Gear grinding
- Transmission shaft grinding
- CV joint grinding
- Bearing grinding
- Engine valve grinding
- Injector component grinding
Bearing Industry
- Inner race grinding
- Outer race grinding
- Roller grinding
- Ball bearing track grinding
Aerospace Industry
- Turbine blade grinding
- Landing gear components
- Engine shaft grinding
- Precision aerospace bearings
Cutting Tool Industry
- Carbide tool grinding
- End mill grinding
- Drill grinding
- Reamer grinding
Hydraulic & Pneumatic Components
- Valve body grinding
- Spool grinding
- Hydraulic piston grinding
JAIN PRECISION TOOLS Rotary Dressers are compatible with:
CNC Profile Grinding Machines
- ANCA CNC Grinders
- WALTER Machines
- STUDER Machines
- JUNKER Grinders
- BLOHM Machines
- MÄGERLE Machines
- ELB Machines
Gear Grinding Machines
- Reishauer
- KAPP NILES
- Gleason
- Liebherr
Bearing Grinding Machines
- CNC Raceway Grinders
- Internal Grinding Machines
- External Grinding Machines
| Parameter | Typical Range |
|---|---|
| Dresser Diameter | 40 mm – 250 mm |
| Diamond Layer Width | 1 mm – 30 mm |
| Profile Accuracy | ±2 to ±5 Microns |
| Runout Accuracy | ≤ 2 Microns |
| Dressing Speed Ratio | +0.3 to +0.9 |
| Maximum RPM | Up to 12,000 RPM |
| Dressing Depth | 0.001 – 0.020 mm/pass |
| Profile Tolerance | Up to ±2 Microns |
| Surface Finish Achievable | Ra 0.1 – 0.4 µm |
Vitrified CBN Wheels
- Speed Ratio (qd): +0.5 to +0.8
- Infeed Rate: 0.001 – 0.005 mm/rev
- Overlap Ratio: 3 – 8
- Dressing Depth: 1 – 5 microns/pass
Vitrified Conventional Wheels
- Speed Ratio: +0.4 to +0.7
- Dressing Feed: 0.02 – 0.20 mm/rev
- Dressing Depth: 5 – 20 microns/pass
High Precision Grinding
- Multiple spark-out cycles
- Fine dressing passes
- Controlled coolant application
- CNC synchronized dressing
Higher Productivity
Reduced dressing cycle time and increased machine utilization.
Superior Grinding Quality
Consistent wheel topography resulting in better surface finish and dimensional control.
Extended Grinding Wheel Life
Optimized dressing minimizes wheel consumption.
Exceptional Profile Accuracy
Perfect replication of complex grinding wheel profiles.
Lower Manufacturing Cost
Reduced downtime, fewer wheel changes, and improved process capability.
Customized Engineering
Special profiles developed as per customer drawings and grinding applications.
Our MCD and CVD Rotary Diamond Dressers are manufactured using:
- Ultra-precision CNC machining
- Advanced diamond brazing technology
- Reverse electroplating technology
- High-accuracy balancing systems
- Laser profile inspection
- Micron-level quality control
Every dresser is supplied with:
- Profile Inspection Report
- Runout Inspection Report
- Dynamic Balancing Report
- Material Traceability Documentation
- Recommended Dressing Parameters
JAIN PRECISION TOOLS
Your Trusted Partner for MCD & CVD Rotary Diamond Dressing Solutions
Products Offered:
- MCD Rotary Diamond Dressers
- CVD Rotary Diamond Dressers
- Reverse Plated Rotary Dressers
- Diamond Form Roll Dressers
- Crush Roll Dressers
- PCD Dressing Tools
- CVD Dressing Blades
- Diamond & CBN Grinding Wheels
- Honing Tools & Superabrasive Solutions
Precision Engineered for Maximum Grinding Performance, Micron Accuracy, and Long Service Life.
